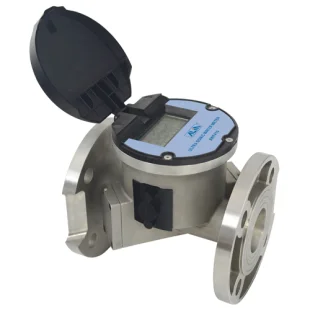

Water Meter AWF410 Series

ALIA

Type

: AWF410 Series

Brand

: ALIA

Download PDF

SPESIFICATION
FEATURES

Measuring Principle : Ultrasonic Time Difference
Size : 50, 80, 100 mm
Body Material : S.S. 304
Process Connection : DIN Flange
Q3 / Q1 (R) : 500:1
Accuracy : +/-1% (Q4-Q2), +/-2% (Q2-Q1)
Precision Class : ISO 4064 rev. 2014, Accuracy class 1
Repeatability : +/-0.2% of reading
Medium Temperature : 0.1~50 °C (T50)
Ambient Temperature : -25~55 °C
Ambient Humidity : 0-100% RH
Resolution : 0.001 Unit (Minimum)
Display : 9 Digit LCD of totalizer, 4 Digit of flowrate
error alarm, flow direction, output, etc

Units
Flowrate : m3/hr, L/s, USGPM
Totalizer : m3, USgal, Acre Feet (A.F.), ft3
Flow Velocity : m/s
Operating Pressure : 16 bar (Maximum)
Pressure Loss : △P 0.16 bar
Severity Levels : Mechanical class M1
: Electromagnetic environment class E2
Communication : MODBUS Protocol
Power Supply : 8-24 VDC
Protection Class : IP68
Data Storage : Totalizer are stored for 10 years (D, M, Y)
Power Supply : 3.6 VDC battery, Size D
Battery Life : ≥15 years (display only)

Q3:Q1 turndown ratio as high as 500:1
Low power consumption, battery life up to 15 years
MODBUS RS485 Output
Bi-directional-including bi-directions outputs
Whole body adopts the material of S.S. 304
IP68 of production class, long term under water operating
With data storage function, can be stored for 10 years (day, month, year)
LCD display, shows flowrate, totalizer, flow direction, alarm, leak detection
Support external power, meets various industrial application
