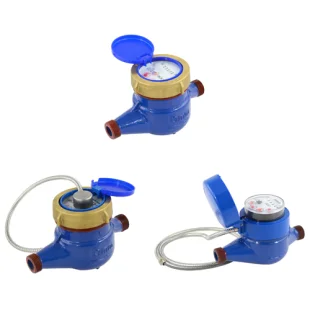

Water Meter AWF400 Series

ALIA

Type

: AWF400 Series

Brand

: ALIA

Download PDF

SPESIFICATION
FEATURES

Size : 15mm, 20mm, 25mm, 32mm, 40mm
Material
Housing : Cast iron / Copper alloy / Stainless Steel 304
Gear, Counter : ABS
Q3 / Q1 (R) : 50, 80, 100
Accuracy : +/-2% (Q4-Q2), +/-5% (Q2-Q1)
Repeatability : +/-0.3% of reading
Operating Temperature : 0-50 °C
Ambient Temperature : 2-55 °C
Ambient Humidity : 0-100% RH
Protection Class : IP68
Totalizer : 5 Digit + 4 Pointer (No-Output)
: 5 Digit + 4 or 3 Pointer (Pulse Output)
: 4 Digit + 4 Pointer (Remote Output)

Resolution : 0.001 m3 / 0.0001 m3
Communication : RS485 signal
: Power Supply 5-15 VDC, Current < 5 mA
Power Line : Red (+), Black (-)
Communication Line : Yellow (A), Blue (B)
Pulse Output : Reed Switch (0.1 m3 / Pulse)
Load : 9-24 VDC, 400 mA Max.
Pressure Loss : Less than 1 bar
Connection : Thread
Operating Pressure : Max. 10 bar
Structure : Compact Version
Installation : Horizontal
: Vertical (option)

Multi-jet dry type water meter
With standard threaded connection
Max. medium temperature up to 50 °C
Available with reed switch pulse output or RS485 output
Magnetic drive dry-type structure, simple and clear display
4 or 5 digit oversize character wheel display
Low pressure loss and high flow capacity, suitable for water supply line
With a highly wear-resistant bearing system, enhanced product's stability, reliability and maximum flow capacity
