Vortex & Swirl Flowmeter AVF7000 Series

ALIA

Type

: AVF7000 Series

Brand

: ALIA

Download PDF

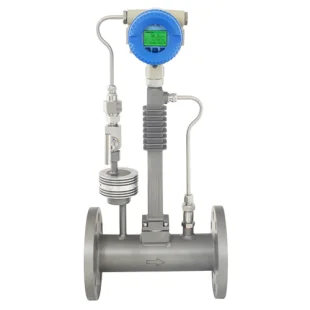

ALIA Vortex & Swirl Flowmeter AVF7000 Series

SPESIFICATION
FEATURES

Size : 15, 20, 25, 32, 40, 50, 65, 80, 100,
125, 150, 200, 250, 300, 350, 400, 450, 500 mm
Measuring Range : Steam_1.6~540,000 kg/hr
: Gas_3~46,000 m3/hr
: Liquid_0.3~4950 m3/hr
Material : Stainless Steel 301 / 304 / 316
Accuracy Liquid : +/-0.7% value of reading
Gas & Steam : +/-1.0% value of reading
Unit : Nm3/hr, Nm3/min, m3/hr, m3/min,
L/hr, L/min, L/s, t/d, t/hr, t/min, kg/hr, kg/m, kg/s, USgal/min,
UKgal/min, Scf/hr, cf/hr, Ib/hr, bbl/d…
Repeatability : +/-0.2% value of reading
Process Connection : Flange / Wafer
Flange Type : JIS 10K / JIS 20K / JIS 40K
ANSI 150# /ANSI 300# /ANSI 600#

DIN PN10 / PN16 / PN25 / PN40
Temperature : -40~280 °C (Standard)
: -40~420 °C (Optional)
Ambient Temperature : -20~60 °C
Pressure : 78 kgf/cm2 (Max.)
Protection Class : IP67
: Intrinsically Safe, Eex ia IIC T4
: Explosion Proof, Ex d IIC T6

Local Display : 2 or 3 lines LCD
: 6 Digit flowrate
: 8 Digit Totalizer
Current Output : 4-20 mA (2-Wire) with HART signal
Load : Rohm= (VDC-12) * 50
Pulse Output : Scaled Pulse
Load : 1000-5000 Ω
Communication : HART (Compatible)
or RS485 (MODBUS Protocol)
Data Storage : Operation parameter and totalizer
figures are stored by EEPROM for more
than 10 years
Housing Material : Aluminum Alloy
Cable Entry : Standard: M20 * 1.5 Option: 1/2" NPTF
Power Supply : 12-32 VDC
: Ni-MH Battery (3 years working hours)
KeyPad : 3 Internal keys for programming
and display control
Option
Pressure Sensor : Pressure compensation
Signal Output : 0-35 mVDC (20 μA Power Supply)
Temperature Sensor : Temperature compensation
Signal Output : PT1000 (2-Wire)

Simplified setup and self-diagnostic functions
Auto. Temperature & Pressure compensation
4-20 mA with HART signal and pulse outputs, user selectable
A very wide selection of sizes
Wide temperature range up to 420 °C
Non-volatile memory for setup and calibration
