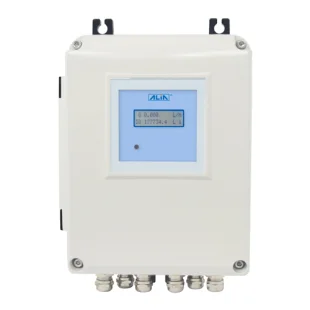

Ultrasonic Flowmeter AUF752 Series

ALIA

Type

: AUF752 Series

Brand

: ALIA

Download PDF

SPESIFICATION
FEATURES

Measuring Principle : Transit time difference
Pipe Size : NN Type : 25-4000 mm (1"-160")
: HT Type : 25-4000 mm (1"-160")
Pipe Material : Cast Iron, Stainless Steel, Ductile Iron
Copper, PVC, Aluminum, Fiberglass etc.
Liner Material : Tar Epoxy, Rubber, Mortar, Polypropylene,Polystyrol,
Polyethylene, Teflon, etc.
Sensor Housing : S.S. 304
Temperatue : Sensor NN : -40 ~ 70 °C
: Sensor HT : -40 ~ 160 °C
Display : 2 Lines LCD with illumination
Flowrate : 7 Digit with decimal point
Totalizer : 8 Digit, Forward, Reverse & Net values.
Engineering Unit : m3 , L, USgal, USbbl, ft3
Time Unit : sec, min, hour, day
Energy Unit : car/h, Kcal/h, Mcar/h, MJ/h, GJ/h, BTU/h
Other : Velocity, Date, Time, Signal condition.
Accuracy : +/-1% ~ +/-1.5% of reading (0.5-30 m/s)
: +/-0.5% of reading (Online calibration)
Repeatability : +/-0.2% of reading
4-20 mA Input : 2 points, programable Range
Function : Temp. Measurements for Thermal Energy
Keypad : 16 Keys with tactile action
Response Time : Less than 1 second
Flow Velocity : 0.01 ~ +/-32 m/s
Resolution : 0.001 m/s
Ambient Temperature : -20~50 °C
Mounting : Wall mounting
Max. Cable Length : 100 m
Power Consumption : Less than 3W
Power Supply : 90-260 VAC 50/60 Hz and 24 VDC +/-10%
Data Storage : Operation parameters and totalizer
figures are stored by EEPROM for more
than 10 years
Current Output : 4-20 mA
Pulse Output : 1 unit / pulse
Rating : 12-24 VDC, 50 mA Max.
Communication : RS485 (MODBUS) (Standard)
: HART (Compatible) (Option)
Dimensions : 270 * 185 * 67 mm
Weight : 2 kg
Protection Class
Converter : IP65
Sensor : IP68 (Submersible)

2 lines LCD display with flowrate, totalizer…
Stores up 720 Hours / 365 Days / 36 Months / 10 Years Totalizer value
Wide range velocities of 0.01 ~ +/-32 m/s
Transducers for pipe size from 25-4000 mm
High accuracy of +/-0.5% of reading
Various output types as 4-20 mA, pulse, RS485, HART
With self-calibration function, real-time measurement calibration
Accurate and stable measurement
Optional dual channel flowmeter, more accurate and reliable measurement
The sensor has anti-high temperature and long service life, It can reach to 200 °C in a short time
