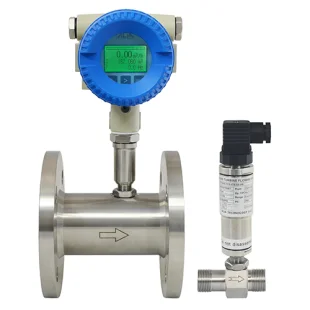

Turbine Flowmeter ATF3500 Series

ALIA

Type

: ATF3500 Series

Brand

: ALIA

Download PDF

SPESIFICATION
FEATURES

Size : 6, 10, 15, 20, 25, 32, 40, 50, 65, 80,
100, 125, 150, 200 mm
Measuring Medium : Liquid
Max. Viscosity : 1-60 cSt
Measuring Range : 0.07-800 m3/hr
Accuracy : +/-1.0% of reading (Standrad)
: +/-0.5% of reading (Optional)
Repeatability : +/-0.2% of reading
Pressure Drop : Max. 290 mbar at 100% Measuring range
(Density 1 g/cm3, Viscosity 1cp)
Unit : m3/d, m3/hr, m3/m, m3/s, l/hr, l/m, l/s,
t/d, t/hr, t/m, kg/d, kg/hr, kg/m, kg/s,
g/hr, g/m, g/s, USG/m, UKG/m, bbl/d,
lb/hr…
Material
Body : S.S. 304 / S.S. 316
Bearing : Tungsten nickel alloy
Rotor : S.S. 420 / S.S. 2205
Housing : Aluminum Alloy
: PA66 (Angular Connector)
Process Connection : Flange (DN6 - DN200)
: Thread (DN6 - DN50)
: Tri-Clamp (DN15 - DN80)
Max. Pressure : Flange: 63 kgf/cm2
: Thread: 63 kgf/cm2
: Tri-Clamp: 10 kgf/cm2
Local Display : 2 or 3 lines LCD
: 6 Digit flowrate
: 8 Digit totalizer
Operation Temperature : -20~120 °C (Without Display: -20~70°C)
Ambient Temperature : -20~60 °C
Current Output : 4-20 mA (2 wires)
Load : Rohm=(VDC-18) * 50
Pulse Output : Scaled Pulse / Unscaled Pulse
Load : 1000-5000 Ω
Communication : HART (Compatible)
: RS485 (MODBUS Protocol)
Data Storage : Operation parameter and totalizer figures
are stored by EEPROM ( >10 years)
Cable Entry : Standard: M20 Option: 1/2" NPTF
: Angular Connector DIN EN 175301-803 A
Angular Connector
Ingress Protection : IP65
Wire Cross-section : Max. 1.5 mm2
Cable Diameter : 6-8 mm
Power Supply : 18-32 VDC / 18-26 VDC (without display)
: Ni-MH Battery (3 years working hours)
Protection Class : IP65 (Angular Connector)
: IP67 (Aluminum Alloy Housing)
: Explosion Proof, Ex d IIC T6

Designed for a wide range of liquid applications
High measuring accuracy, regardless of the mounting position
4-20 mA with HART signal and pulse outputs, user selectable
Abrasion-resistant tungsten carbide rotor shaft and bearings
Superior materials of construction for high performance in aggressive environments
Easily cleaned and designed to flushed particulates through the turbine with the medium
For variable use thanks to different pick-up sensors as well as a variety of connections and sizes
