Smart Target Flowmeter ATF80 Series

ALIA

Type

: ATF80 Series

Brand

: ALIA

Download PDF

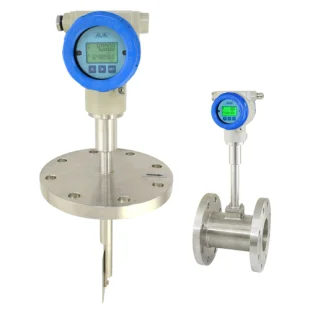

ALIA Smart Target Flowmeter ATF80 Series

SPESIFICATION
FEATURES

Size : 15, 20, 25, 32, 40, 50, 65, 80, 100, 125,
150, 200, 250, 300… 6000 (mm)
Measuring Range : Steam: 0.002-3400000 t/hr
: Gas: 1-3280000 Nm3/hr
: Liquid: 0.1-55800 m3/hr
Material : Stainless Steel 304 / 316
Accuracy
Wafer / Flange Type : +/-0.75% of reading
Insertion Type : +/-1.6% of reading
Repeatability : +/-0.05% FS
Multi Flow Range : 1-3 flow range
Process Connection : Flange / Wafer / Insertion
Flange Type : JIS 10K / JIS 20K / JIS 40K
ANSI 150# / ANSI 300# / ANSI 600#
PN10 / PN16 / PN25 / PN40
Ambient Temperature : -25~70 °C
Temperature Effect : ≤±1% per 50 °C
Max. Pressure : 100 bar
Working Temperature
Flange / Wafer : -60~450 °C
Insertion : -60~450 °C
Hot Tap (Retractable) : -20~80 °C

Local Display : 4 Lines LCD (with backlight)
: 5 Digit flowrate
: 8 Digit totalizer
Current Output : 4-20 mA (2-Wire)
Load : Rohm= (VDC-10) * 50
Alarm Function : High / Low Alarm
Turndown Ratio : 15:1
Communication : HART signal (Compatible)
Data Storage : Operation parameters and totalizer
figures are stored by EEPROM for more
than 10 years
Housing Material : Aluminum Alloy
Cable Entry : Standard: M20 Option: 1/2" NPTF
Power Supply : 10-32 VDC
Power Effect : ≤0.01% / V
Keypad : 3 Internal keys for programming
and display control
Low Flow Cutoff : 0-20%
Damping : 0-32 Seconds
Protection Class : IP67
: Intrinsically Safe, Eex ia IIC T4

:
Explosion Proof, Ex d IIC T6

Measure low velocity less than 0.1 m/s
Measure high-temp, low-pressure and low-velocity flare gas.
4-20 mA output HART communication
Low Pressure drop
The Max. temperature can be up to 450 °C
Online calibration by Alia unique software
Insertion Type or Hot-Tap Type available for large pipeline
