Radar Level Transmitter ARL5200 Serise

ALIA

Type

: ARL5200 Serise

Brand

: ALIA

Download PDF

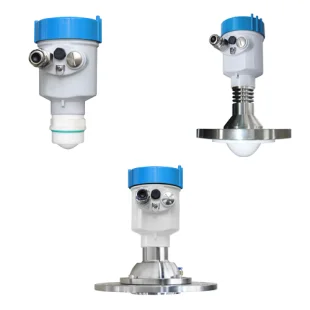

ALIA Radar Level Transmitter ARL5200 Serise

SPESIFICATION
FEATURES

Measure Principle : Frequency Modulated Continuous Wave(FMCW)
Frequency Range : 77-82 GHz
Measure Range : 0-150 m
Resolution : 1 mm / 0.003 ft
Repeatability : +/-0.5 mm
Accuracy : +/-2 mm…+/-5 mm
Blind Area : 0.01 - 0.03 m
Beam Angle α : 14° / 8° / 6° / 3°
Sensor Update Rate : >1s (Dependent on configuration setting)
Maximum Level Rate : Max. 200 mm/s
Ambient Temp. Effect : +/-1 mm (+/-0.04 in.) / 10 K
Material
Antenna : PTFE / PEEK
Process Connection : PTFE / S.S. 304 / S.S. 316 / S.S. 316L /
S.S + PTFE
Housing : Aluminum Alloy (Standard)
: S.S. 304 (Option)
O-ring : FKM
Process Connection : Thread (3/4" NPT, G3/4", 1-1/2" NPT,
G1-1/2", G3", 3" NPT)
: Flange (DN50-DN200)
: Universal Flange (DN100-DN200)
Protection Class : IP67
: Explosion Proof, Ex d IIC T6
: Intrinsically Safe, Ex ia IIC T6
Display : 4-6 Digit LCD with Bargraph
Keypad : 4 internal keys for programming
Unit : ft, in, m, cm, mm
Ambient Temperature : -40~80 °C
Process Temperature : -40~260 °C (Max.)
Process Pressure : -1.0~25 bar G (Max.)
Humidity : 0-100% RH, non-condensing
Max. Cable Length : 40 m (For single cavity housing)
Power Supply : 15-28 VDC (2-Wire)
: 24 VDC ± 10% (4-Wire)
: 90-253 VAC, 50 / 60 Hz (4-Wire)
Power Consumption : 22.5 mA / 1W (Max.) (2-Wire)
Current Output : 4-20 mA (2-Wire, 4-Wire)
Load : Rohm=(VDC-15) * 50
Resolution : 1.6 μA
Damping : 0-999 s
Communication : HART signal (Compatible)
: RS485 (MODBUS Protocol)
Data Storage : Operation parameters and totalization
date are stored by EEPROM for more
than 10 years
EMI / RFI Effect : Follow SAMA PMC 33.1 from 20 to 1000
MHz and for field strengths up to 30 V/m
Vibration Resistance : 2g at 10-1000 Hz according to IEC 61298-3
Cable Entry : Standard: M20, Option: 1/2" NPTF

Unique FMCW radar technology for optimal performance
High frequency 80 GHz fast-sweep for application flexibility
Measuring range up to 150 m (492 ft), high accuracy of ±2 mm
Non-contact radar, free of wear and pollution
Anti-interference of noise, vapor, dust, foam, vacuum, etc.
Small beam angle & focus energy to enhance anti-inference ability
The measurement of low permittivity constant media is more stable
