Radar Level Transmitter ARL5000 Series

ALIA

Type

: ARL5000 Serise

Brand

: ALIA

Download PDF

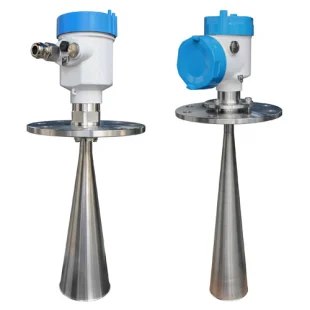

ALIA Radar Level Transmitter ARL5000 Series

SPESIFICATION
FEATURES

Measure Principle : Radar
Measure Range : 0-70 m
Display : 4 Digit LCD with Bargraph
Resolution : 1 mm / 0.003 ft
Accuracy : +/-3 mm…+/-15 mm
Blind Area : The end of antenna
Beam Angle α : 20° / 18° / 14° / 12° / 8° / 6°
Measuring Interval : >1s (Dependent on configuration setting)
Adjustment Time : >1s (Dependent on configuration setting)
Ambient Temperature : -40~80 °C
Relative Humidity : 0-95% RH
Permittivity DK : >1.4
Ambient Temp. Effect : 3 mm / 10 K, Max. 10 mm
Gas Pressure Effect : 0.22 % (Air: 10 bar / 20 °C)
Material
Antenna : PTFE / PFA / S.S. 316L
Process Connection : PP / PTFE / S.S. 304 / S.S. 316L / S.S +coated
Housing : Aluminum Alloy
Process Connection : 1-1/2" NPT / G 1-1/2" Max. : 16 bar
: Flange (DN50-DN150) Max. : 40 bar
: Universal Flange (DN80-DN150) Max. : 3 bar
Protection Class : IP67
: Explosion Proof, Ex d IIC T6
: Intrinsically Safe, Ex ia IIC T6

Keypad : 4 internal keys for programming
Unit : ft, in, m, cm, mm
Process Temperature : -40~130 °C (Standard)
: -40~230 °C (Optional)
Process Pressure : -1.0~40 bar G (Max. )
Max. Cable Length : 8 m (for single cavity housing)
Power Supply : 16-26 VDC (2-Wire)
: 24 VDC ± 10% (4-Wire)
: 90-253 VAC, 50 / 60 Hz (4-Wire)
Power Consumption : 22.5 mA / 1W (Max. )
Current Output : 4-20 mA (2-Wire, 4-Wire)
Load : Rohm=(VDC-16) * 50
Resolution : 1.6 μA
Alarm Current : No change / 20.5 mA / 22 mA / 3.9 mA
Damping : 0-40 s
Communication : HART signal (Compatible) (Standard)
: RS485 (MODBUS Protocol) (Optional)
Data Storage : Operation parameters and totalization
date are stored by EEPROM for more
than 10 years
EMI / RFI Effect : Follow SAMA PMC 33.1 from 20 to 1000
MHz and for field strengths up to 30 V/m
Vibration Resistance : 20-2000 Hz, 1 (m/s2)2/Hz
Cable Entry : Standard: M20, Option: 1/2" NPTF

Anti-interference of noise, vapor, dust, foam, vacuum, etc.
Shorter wavelength, better reflection on inclined solid surface
Non-contact radar, free of wear and pollution
Small beam angle & focus energy to enhance anti-inference ability and radar echo
High frequency, ideal for the measurement of solid and dielectric constant
Measuring distance up to 70 m (230 ft), high accuracy of 3 mm
