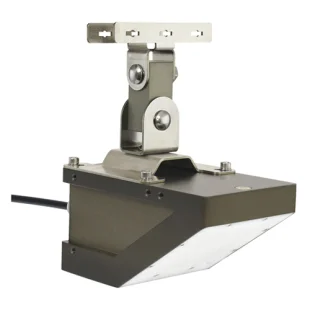

Radar Flowmeter ARF5500 Series

ALIA

Type

: ARF5500 Series

Brand

: ALIA

Download PDF

SPESIFICATION
FEATURES

Measure Principle
Velocity

: Radar Doppler
Level

: Radar
Velocity
Radar Power

: 100 mW
Radar Frequency

: 24 GHz
Measuring Range

: 0.03-20 m/s
Measuring Accuracy

: ±0.01 m/s; ±2% FS whichever is greater
Measuring Resolution

: 1 mm/s
Beam Angle α

: 12°
Level
Radar Power

: 10 mW
Radar Frequency

: 60 GHz (80 GHz)
Measuring Range

: 0.2-7 m, 0.2-10 m, 0.2-20 m,
: 0.2-30 m, 0.2-40 m
Measuring Accuracy

: ±2 mm; ±0.05% FS whichever is greater
Measuring Resolution

: 1 mm
Beam Angle α

: 8°
Process Temperature : -35~70 °C
Housing Material : PTFE - coated Aluminum Alloy
Protection Class : IP68
Display & Recorder : ARC800 (Option)
DIN Size

: 96 * 96 mm
Input

:
RS485 / Universal Input
Output

: 4-20 mA, Relay
Flowmeter Output : 4-20 mA (Option)
Load

: Max. 500 Ω
Output Type

: Liquid level, Distances, flow rate
Flowmeter Communication : RS485 (MODBUS RTU Protocol)
Communication Interface : RS485
: 9600 bps-115200 bps
: 8 bit, non parity
: 1 bit stop
Power Supply : 7-32 VDC
: 5.5-32 VDC (Option)
Operating Current :
Work Mode

: ≤25 mA at 12 VDC
Standby Mode

: ≤1 mA at 12 VDC
Lighting Protection Grade : 6 KV
Remote Cable Length : Max. 200 m
Dimensions : 160 * 100 * 90 mm
Weight : < 1 kg
Mounting : Pole Mounting

Velocity measuring up to 20 m/s, accuracy up to ±0.01 m/s
Water level measuring range up to 40 m, accuracy up to ±2 mm
Dual direction flow measurement
With rain mode to prevent interference caused by rain
Waterproof grade IP68, perfect for outdoor installation
Non-contact measurement, unaffected by wind, temperature, haze, sediment, flotage, etc.
Low power consumption, can be powered by solar energy, easy to install and maintenance-free
RS485 / 4-20 mA interface, excellent configuration software and monitoring system
