Pressure Transmitter APT3100 Series

ALIA

Type

: APT3100 Series

Brand

: ALIA

Download PDF

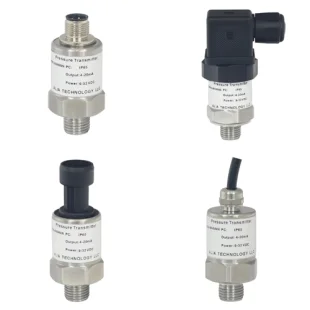

ALIA Pressure Transmitter APT3100 Series

SPESIFICATION
FEATURES

Process Fluid : Liquid, Gas, Vapor
Application : Absolute Pressure, Gauge Pressure,
Vacuum
Measuring Range : 0-0.1~0-600 bar
Accuracy : +/-0.45% of span
Non-Linearity : ≤0.2% of span (BFSL)
Non-Repeatability : ≤0.05% of span
Stability : ≤+/-0.2% of URL for 1 year
Working Temperature : -40~85 °C
Compensation Temp. : -10~70 °C
Temp. Effect of zero
Ranges≤0.25 bar

: ≤0.4% FS / 10K
Ranges>0.25 bar

: ≤0.2% FS / 10K
Temp. Effect of span : ≤0.2% FS / 10K
Over Pressure Limit : 250% of Full Scale
Vibration Resistance : 20 g (20-2000 Hz) per IEC 60068-2-6
Shock Resistance : 100 g (10 ms)
EMI / RFI Effect : Follow SAMA PMC 33.1 from 20-1000
MHz and for field strengths up to 30 V/m
Ambient Temperature : -20~70 °C
Humidity Limit : 0-95% Relative Humidity
Process Connection : G1/4" (Standard)
M12x1.5, 1/4"-18 NPTM, 1/8"-27 NPTM,
7/16"-20 UNF (Female) etc. (Option)
Pressure Port : 3.0 mm
Response Time : ≥1 ms
Output Response Time : ≤8 ms
Current Output : 4-20 mA (2-Wire)
Load

: ≤ (VDC-9) / 0.02A
Voltage Output : 1-5 VDC (3-Wire)
Load

: > 5000 ohm
Power Supply : 9-32 VDC
Material
Connection

: Stainless steel 304
Diaphragm

: Stainless steel 316L
Body

: Stainless steel 304
Fill Fluid

: Silicone Oil
Wetted O-ring (inside)

: Viton
Seal Gasket (outside)

: NBR
Electrical Connector

Cable Outlet

: 2/3-Cable, Standard Outlet Cable 0.5 m
Packard

: 3-Pin, Standard Outlet Cable 1 m
DIN EN175301-803A

: 3-Pin, PG9, Without Outlet Cable
M12x1

: 4-Pin, Standard Outlet Cable 1.5 m
Protection Class
: IP54 (Packard)
: IP65
Intrinsically Safe : Ex ia IIC T6 (Standard)
Weight : Approx. 80 g

Dedicated high-performance ASIC regulating circuit
Short response time
Measuring ranges from 0-0.1~0-600 bar
Output signal: 4-20 mA (2-Wire) or 1-5 VDC
High accuracy of +/-0.45% of span
Compact size to meet the needs of small space applications
Multiple configurations to choose from for the best solution
