Pressure Transmitter APT3000 Series

ALIA

Type

: APT3000 Series

Brand

: ALIA

Download PDF

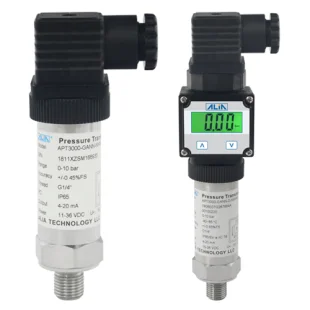

ALIA Pressure Transmitter APT3000 Series

SPESIFICATION
FEATURES

Process Fluid : Liquid, Gas, Vapor
Application : Absolute Pressure, Gauge Pressure,
Vacuum
Measuring Range : 0-0.16~0-1000 bar
Accuracy : +/-0.45% of span (Standard)
: +/-0.20% of span (Option)
Non-Linearity : ≤0.2% of span (BFSL)
Non-Repeatability : ≤0.05% of span
Stability : ≤+/-0.2% of URL for 1 year
Working Temperature : -40~85 °C (Standard)
: -40~125 °C (Option)
Compensation Temp. : -10~70 °C
Temp. Effect of zero
Ranges≤0.25 bar : ≤0.4% FS / 10K
Ranges>0.25 bar : ≤0.2% FS / 10K
Temp. Effect of span : ≤0.2% FS / 10K
Vibration Resistance : 20 g (20-2000 Hz) per IEC 60068-2-6
Shock Resistance : 100 g (10 ms)
Adjustability
Zero Point : +/-3%
Span : 65%-150% (with APP300)
Process Connection : G1/4" (Standard)
: 1/2" NPT, 1/2" BSPP, M20, 3/4" NPT
: 3/4" BSPP etc. (Option)
Intrinsically Safe : Ex ia IIC T6 (Standard)

Display Range : -1999~9999
Display Unit : MPa, bar, kPa, psi, pa, none
Response Time : ≥1 ms
Output Response Time : ≤8 ms
Current Output : 4-20 mA (2-Wire)
Load : ≤ (VDC-15) / 0.02A
Load : ≤ (VDC-19) / 0.02A (with Display)
Power Supply : 11-36 VDC
: 15-36 VDC (with Display)
Material
Connection : Stainless steel 304
Diaphragm : Stainless steel 316L
Body : Stainless steel 304
Fill Fluid : Silicone Oil
Wetted O-ring (inside) : Viton
Electrical Connector : PA66+30% FV
Display Case : PA66+30% FV
Electrical Connector
Ingress Protection : IP65
Wire Cross-section : Max. 1.5 mm2
Cable Diameter : 6-8 mm
EMI / RFI Effect : Follow SAMA PMC 33.1 from 20-1000
MHz and for field strengths up to 30 V/m
Ambient Temperature : -20~70 °C
: 0-95% Relative Humidity

Improved performance, increased accuracy and greater stability
Non-linearing 0.2% of span (BFSL)
Measuring ranges from 0-0.16~0-1000 bar
Output signal: 4-20 mA (2-Wire)
Zero point and span adjustable
Electrical connections: Angular connector
4 Digit LCD display, 270° rotatable
