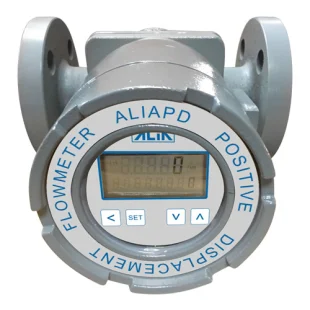

Positive Displacement Flowmeter APF850 Series

Size : 15S, 015, 020, 025, 040 mm
Flow Range : 5-5000 L/hr
Accuracy : +/-0.5% of reading (Standard)
: +/-0.2% of reading (Option)
Repeatability : +/-0.1% of reading
Material
Body, Cover & Flange : Cast Iron / Stainless Steel 316
Roots : Polyphenylene sulfide (PPS)
O-Rings : PTFE
Register Housing : Aluminum Alloy
Max. Viscosity : 0.5-200 cP (Standard)
: 201-50000 cP (Optional)
Operating Temperature : -10~120 °C (Standard)
: -10~150 °C (Optional)
Max. Pressure : 10 kgf/cm2 (Cast iron Body)
: 16 kgf/cm2 (S.S. 316 Body)
Process Connection
Thread : NPT (Male) with Coupling
Flange : JIS 10K FF / ANSI 150# FF
Power Supply : 3.6 V Battery, Size D * 1 ea
Battery Life : 3-6 years
Protection Class : IP65
: Intrinsically Safe, Eex ia IIC T5
: Explosion Proof, Ex d IIB T6
Painting : Dark Grey

Flow Range
15S mm : 5-200 L/hr@5 cP
015 mm : 10-700 L/hr@5 cP
020 mm : 20-1300 L/hr@5 cP
025 mm : 50-3500 L/hr@5 cP
040 mm : 100-5000 L/hr@5 cP
Display
Flowrate / Totalizer : 5 Digit Flowrate / 8 Digit Totalizer
Dual Totalizer : 5 Digit Totalizer (Resettable, Magnet)
: 8 Digit Totalizer (Reset from Internal)
Engineering Unit : L, m3, ft3, Gal
Time Unit : Sec, min, hr
Current Output
Load : Rohm (VDC-6) * 50
Pulse Output
Without Display : Reed Switch (2-Wire, Unscaled Pulse)
: 2-36 VDC, 500 mA Max.
With Display : Open Collector (2-Wire, Scaled Pulse)
: 11-26 VDC, 50mA, 15Hz Max.
Cable Entry : 1/2" NPT (F)
Optional : Strainers, U-Type or Y-Type
: Air Eliminator
Ambient Temperature : -25~60 °C
