Multi-Function Calibrator ACA60 Series

ALIA

Type

: ACA60 Series

Brand

: ALIA

Download PDF

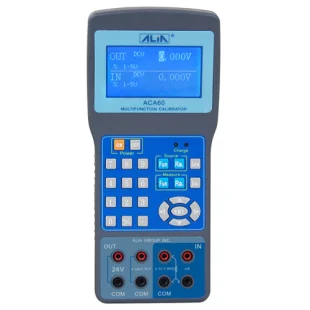

ALIA Multi-Function Calibrator ACA60 Series

SPESIFICATION
FEATURES

Source : VDC, mA, mV
: T/C (S, K, E, T, J, B, R, N, W325)
: Frequency, 0-5000 Hz (4 VDC)
: Resistance, 10-510 Ω
: 24 VDC, 30 mA Max.
Read : VDC, mA, mV
: T/C (S, K, E, T, J, B, R, N, W325)
: Frequency, 0-5000 Hz (24 VDC Max.)
: RTD (PT100, CU50)
Response Time : 80 ms
Operating Temp. : -10~55 °C
Ambient Humidity : 0-90% RH non-condensing
Display : 2" (128 * 64 Pixels), Backlight LCD
Display Update Rate : 4 / Second
Keyboard : 25 Silicone keyboard
Password Protection : 4 Digits
Battery Operation : 6-8 Hours
Charge Time : 8-12 Hours

Battery Type : Ni-MH battery, 6 * 1.2 VDC (AA)
Charger Supply : 90-260 VAC 50/60 Hz
Power Consumption : 2 W
Accessory Included : Test leads two pairs
: Power Adaptor (90-260 VAC, 50/60 Hz)
: Reinforced aluminum carrying case
: Shoulder straps for carrying case only
Dimension
Calibrator : 231 * 104 * 45 mm
: 9.1" * 4.1" * 1.8"
Carrying Case : 330 * 250 * 150 mm
: 13" * 9.8" * 6.0"
Weight : 0.7 kg
Enclosure : IP54

Large 2-line LCD with backlit display
Sources and reads mA, mV, V, W, RTD and frequency
Keypad to enter output parameters directly
Simultaneous millivolt display when in temperature measurement mode
Small, streamlined shape, easy to carry and hold
Thermocouple measurement / output with automatic or manual cold junction compensation
Quick query to resistance & temperature, and millivolt & temperature
24 VDC loop power supply
Ni-MH battery available, continuous use for at least 6 hours
Concurrent input / output, convenient to operate
Temperature unit °C and °F available
