Multi-Function Calibrator ACA50 Series

ALIA

Type

: ACA50 Series

Brand

: ALIA

Download PDF

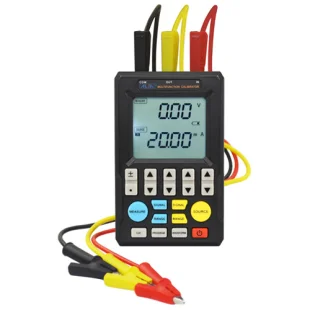

ALIA Multi-Function Calibrator ACA50 Series

SPESIFICATION
FEATURES

Source
ACA50NB : VDC, mA, mV
: T/C (S, K, E, T, J, B, R, N)
: 24 VDC, 25 mA Max.
ACA50SB : VDC, mA, mV
: T/C (S, K, E, T, J, B, R, N)
: RTD (PT100)
: Resistance, 15-400 W
: 24 VDC, 25 mA Max.
Read
ACA50NB : VDC, mA, mV
: T/C (S, K, E, T, J, B, R, N)
ACA50SB : VDC, mA, mV
: T/C (S, K, E, T, J, B, R, N)
: RTD (PT100)
: Resistance, 0-400 Ω
Operating Temp. : -10~50 °C
Ambient Humidity : 20-80% RH non-condensing
Programmable Output : Setting Value / Time max. 4 segments
:
Max. 40 segments from Min. -Max.

-Min.

Cycle Time : 999 Time Maximum

Display : 2.5" (4 * 39 Pixels), Backlight LCD
Display Update Rate : 3 / Second
Response Time : 80 ms
Keyboard : 20 Silicone keyboard
Battery Type : 4 * 1.5 VDC AAA (LR03)
Battery Operation : 4-8 Hours
Power Consumption : 1.2 W
Overvoltage Protection : Max. 30 VDC
+/-Reverse Protection : Max. 30 VDC
Enclosure : IP54
Dimension
Calibrator : 115 * 70 * 26 mm
: 4.53" * 2.76" * 1.02"
Carrying Case : 135 * 96 * 60 mm
: 5.31" * 3.78" * 2.36"
Accessory Included : Carrying case
: Test leads (Black * 1,Yellow * 1,Red * 1)
: USB cable
Weight : 0.3 kg

Sources and reads mA, mV, V, W, RTD and TC
Keypad to enter output parameters directly
Concurrent input / output, convenient to operate
Sub display of sources and reads (mA, mV, V)
Large 2-line LCD with backlight display
24 VDC loop power supply
Thermocouple measurement / output with automatic or manual cold junction compensation
Corresponds to various types of source pattern
(Step sweep / Linear sweep / Manual step)

More From Multi-Function Calibrator ACA50 Series

Multi-Function Calibrator ACA50 Series

The ACA50 Series signal calibrator can measure and output multiple signals including voltage, current, TC and thermal resistance. The adoption of high definition LCD screen and silicone keypad is convenient for operating. With long standby time, high precision and programmable output function. It's widely used in lab, PLC in industry site, process instrument, electronic valve and many other area's debugging.
