Electromagnetic Flowmeter AMF900 Series

ALIA

Type

: AMF900 Series

Brand

: ALIA

Download PDF

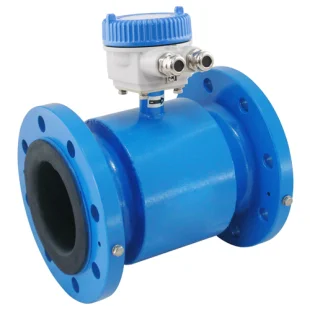

ALIA Electromagnetic Flowmeter AMF900 Series

SPESIFICATION
FEATURES

Size : 10A, 10, 15, 20, 25, 32, 40, 50, 65, 80,
100, 125, 150, 200, 250, 300, 350, 400,
450, 500, 600, 700, 800, 900, 1000,
1200, 1400, 1600, 1800, 2000 mm
Measuring Range : Velocity 0-0.25 m/s Min.
0-12 m/s Max.
Material
Measuring Tube : Stainless Steel 304
Flange : Carbon Steel (Standard)
: Stainless Steel 304 (Option)
: Stainless Steel 316, 316L (Option)
Coil Housing : Carbon Steel (Standard)
: Stainless Steel 304 (Option)
: Stainless Steel 316, 316L (Option)
Liner : Polyurethane (25-400 mm)
: Neoprene (100-2000 mm)
: FEP (10A-300 mm)
: PTFE (25-2000 mm)
: PFA (10A-300 mm)
Protection Class : Junction box IP67, Body IP68
: IP68 (Submersible)
Conductivity : More than 5 μS/cm
Explosion Proof : Ex d ia [ia] q llC T6
(with AMC3200, AMC3200DF only)
Cable Entry Standard: M20 Option: 1/2" NPTF
Electrode & Grounding : Stainless Steel 316L
: Hastelloy B
: Hastelloy C
: Titanium
: Tantalum
: Platinum
: Tungsten Carbide
Grounding Electrode : DN10A / 10: use Grounding Ring * 1 pc
: DN15-2000: 3 Electrodes
Process Connection : Flange
Flange Type : JIS 10K / JIS 20K / JIS 40K
ANSI 150# / ANSI 300# / ANSI 600#
DIN PN10 / PN16 / PN25 / PN40
Grounding Resistance : Must be less than 10 Ω
Accuracy : +/-0.4% of reading (Velocity≥0.5 m/s)
: +/-0.0025 m/s (Velocity<0.5 m/s)
: +/-0.2% of reading
(Suitable for AMC3200 / 3200E converter)
Temperature : -20~70 °C(Polyurethane,PU)
: -20~70 °C(Neoprene)
: -40~120 °C(PTFE 1"-10",FEP/PFA 3/8"-12")
: -40~140 °C(PTFE 1"-6",FEP/PFA 3/8"-12")
: -40~180 °C(PFA 3/8"-12")
Ambient Temperature : -25~60 °C
Max. Pressure : 350 kgf/cm2

Various liner and electrode satisfy most industrial applications
Flow Velocity range: 0-12 m/s, precise in low flow applications
It comes any flanges such as, ANSI, DIN, JIS etc.
Excellent for high pressure application
Protection class: IP68 available; sensor submersible
FEP Liner is suitable for vacuum tube
High accuracy of +/-0.4% value of reading (or +/-0.2% value of reading)
With Forward / Reverse flowrate measurement function
It has electrode cleaning function
