Electromagnetic Flowmeter AMF601 Series

ALIA

Type

: AMF601 Series

Brand

: ALIA

Download PDF

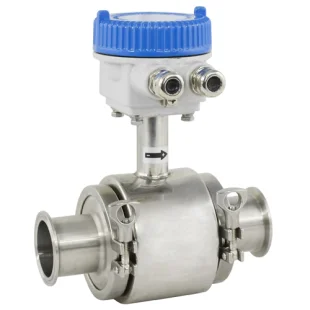

ALIA Electromagnetic Flowmeter AMF601 Series

SPESIFICATION
FEATURES

Size : 10,15, 20, 25, 32, 40, 50, 65, 80 mm
: 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2",
2-1/2", 3"
Measuring Range : Velocity 0-0.25 m/s Min.
0-12 m/s Max.
Material
Tube & Connection : Stainless Steel 304, 316, 316L
Coil Housing : Stainless Steel 304 (Standard)
: Stainless Steel 316 (Option)
: Stainless Steel 316L (Option)
Liner : FEP
Electrode : Stainless Steel 316L
: Hastelloy B
: Hastelloy C
: Titanium
: Tantalum
: Tungsten Carbide
: Platinum
Protection Class : Junction box IP67, Body IP68
: IP68 (Submersible)
Conductivity : More than 5 μS/cm

Cable Entry : Standard: M20 Option: 1/2" NPTF
Ambient Temperature : -25 ~ 60 °C
Process Connection : IDF Tri-Clamp
: Union Screw
Grounding Resistance : Must be less than 10 Ω
Accuracy : +/-0.5% reading (Velocity≥0.5 m/s)
: +/-0.2% reading
(Suitable for AMC3200 / 3200E converter)
: +/-0.0025 m/s (Velocity<0.5 m/s)
Temperature : -40 ~ 150 °C
Max. Pressure : 10 kgf/cm2 (Standard)
: 40 kgf/cm2 (Option)
Explosion Proof : Ex d ia [ia] q llC T6
(with AMC3200, AMC3200DF only)

Light and compact version
Flow velocity range: 0-12 m/s, precise in low flow applications
IDF Tri-Clamp or Union screw Connection
Excellent for high pressure application
Protection class: IP68 available; sensor submersible
FEP liner is suitable for vacuum tube
High accuracy of +/-0.4% value of reading (or +/-0.2% value of reading)
With Forward / Reverse flowrate measurement function
