Electromagnetic Flowmeter AMF500 Series

ALIA

Type

: AMF500 Series

Brand

: ALIA

Download PDF

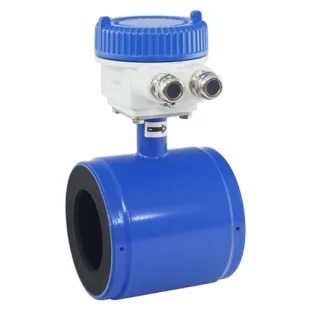

ALIA Electromagnetic Flowmeter AMF500 Series

SPESIFICATION
FEATURES

Size : 50, 65, 80, 100, 125, 150, 200 mm
Measuring Range : Velocity 0-0.25 m/s Min.
0-12 m/s Max.
Material
Measuring Tube : Stainless Steel 304
Coil Housing : Carbon Steel (Standard)
: Stainless Steel 304 (Option)
: Stainless Steel 316 (Option)
Liner : PTFE, Polyurethane
Protection Class : Junction box IP67, Body IP68
: IP68 (Submersible)
Conductivity : More than 5 μS/cm
Electrode & Grounding : Stainless Steel 316L
: Hastelloy B
: Hastelloy C
: Titanium
: Tantalum
: Tungsten Carbide
: Platinum

Cable Entry : Standard: M20 Option: 1/2" NPTF
Ambient Temperature : -25~60 °C
Process Connection : Wafer
Flange Type : JIS 10K / JIS 20K / JIS 40K
ANSI 150# / ANSI 300# / ANSI 600#
DIN PN10 / PN16 / PN25 / PN40
Grounding Resistance : Must be less than 10 W
Accuracy : +/-0.5% of reading (Velocity≥0.5 m/s)
: +/-0.2% of reading
(Suitable for AMC3200 / 3200E converter)
: +/-0.0025 m/s (Velocity<0.5 m/s)
Temperature : -20~70 °C (Polyurethane, PU)
: -40~120 °C (PTFE 2"-8")
: -40~140 °C (PTFE 2"-6")
Standard Pressure : 40 kgf/cm2 (DN50-DN80)
: 16 kgf/cm2 (DN100-DN150)
: 10 kgf/cm2 (DN200)
Explosion Proof : Ex d ia [ia] q llC T6
(with AMC3200, AMC3200DF only)

Light and compact version
Flow Velocity range: 0-12 m/s, precise in low flow applications
It comes any fange such as ANSI, DIN, JIS etc.
Excellent for high pressure application
Protection class: IP68 available; sensor submersible
Available in PTFE and Polyurethane liner
High accuracy of +/-0.4% value of reading (or +/-0.2% value of reading)
With Forward / Reverse flowrate measurement function
It has electrode cleaning function
