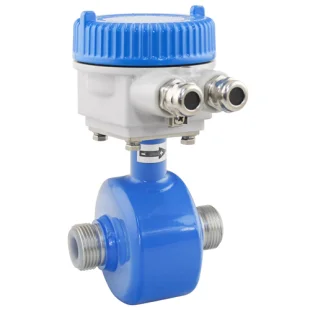

Electromagnetic Flowmeter AMF301 Series

Size : FEP: 4, 10, 15, 25 mm
: PU: 10, 15, 20, 25, 32, 40 mm
Measuring Range : Velocity 0-0.25 m/s Min.
0-12 m/s Max.
Material
Tube & Connection : Stainless Steel 304
Coil Housing : Carbon Steel (Standard)
Liner : PU / FEP
Electrode : Stainless Steel 316L
: Titanium
: Hastelloy B
: Hastelloy C
: Tantalum
: Platinum (25, 32, 40 mm Only)
Flow Range
4 mm : 0-11.3 L/hr ~ 0-543 L/hr
10 mm : 0-71 L/hr ~ 0-3,393 L/hr
15 mm : 0-159 L/hr ~ 0-7,634 L/hr
20 mm : 0-283 L/hr ~ 0-13,571 L/hr
25 mm : 0-442 L/hr ~ 0-21,205 L/hr
32 mm : 0-724 L/hr ~ 0-34,743 L/hr
40 mm : 0-1,131 L/hr ~ 0-54,286 L/hr

Cable Entry : Standard: M20 Option: 1/2" NPTF
Ambient Temperature : -25 ~ 60 °C
Process Connection : Screw thread (BSPP)
Grounding Resistance : Must be less than 10 Ω
Accuracy : +/-0.4% of reading (Velocity≥0.5 m/s)
: +/-0.2% of reading
(Suitable for AMC3200 / 3200E converter)
: +/-0.0025 m/s (Velocity<0.5 m/s)
Temperature
Compact : -10 ~ 80 °C
Remote : -20 ~ 120 °C (Liner: FEP)
: -10 ~ 80 °C (Liner: PU)
Max. Pressure : 16 kgf/cm2
Explosion Proof : Ex d ia [ia] q llC T6
(with AMC3200 only)
Protection Class : IP67
Conductivity : More than 5 μS/cm
