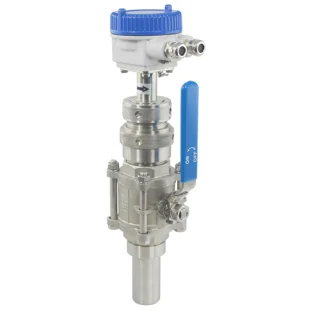

Electromagnetic Flowmeter AMF100 Series

Size : 150, 200, 250, 300, 350, 400, 450
500, 600, 700…... 6000 mm
Measuring Range : Velocity 0-0.25 m/s Min.
0-12 m/s Max.
Material
Protection Tube : Stainless Steel 316
Screw : Stainless Steel 316
Electrode : Stainless Steel 316L
Liner : PTFE
Ball Valve : Stainless Steel 316 (Optional)
Hot-Tap Tool / Kit : Stainless Steel 304 (Optional)
Mounting : Compact or remote
Process Connection
Threaded : Threaded, 2" BSPP Female
Flange : Flange, JIS / ANSI / DIN
Installation : Direct insert to the pipe
: Insert with Ball Valve
: Hot-Tap into pressurised pipe
Protection Class : IP67
: IP68 (Submersible)
Explosion Proof : Ex d ia [ia] q llC T6
(with AMC3200 only)

Cable Entry : Standard: M20 Option: 1/2" NPTF
Grounding Resistance : Must be less than 10 Ω
Accuracy : +/-2% of reading (Velocity≥0.5 m/s)
: +/-0.8% of Full Scale (F.S.>2 m/s)
: +/-0.01 m/s (Velocity<0.5 m/s)
Repeatability : +/-0.4% of reading
Process Temperature : -10~80 °C
Ambient Temperature : -25~70 °C
Max. Pressure : 10 kgf/cm2
Conductivity : More than 10 μS/cm
Weight : 3-10 kg
Coil Resistance : 70-98 Ω
Sensor Diameter : 44 mm
Sensor Length : 310 mm (for 150-600 mm pipe ID)
550 mm (for 600-2400 mm pipe ID)
800 mm (for 2400-4200 mm pipe ID)
1050 mm (for 4200-6000 mm pipe ID)
