Electromagnetic Flowmeter AMC3200DF Series

ALIA

Type

: AMC3200DF Series

Brand

: ALIA

Download PDF

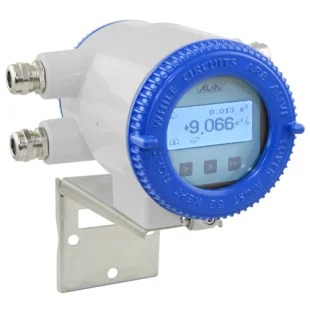

ALIA Electromagnetic Flowmeter AMC3200DF Series

SPESIFICATION
FEATURES

Excitation : Dual Frequency Excitation
Display : 3 Lines LCD with illumination
Line 1 : 9 Digit totalizer for forward flow
: 9 Digit totalizer for reverse flow
: 9 Digit totalizer for difference
Line 2 : 5 Digit flowrate / velocity / % / mA /Hz
Line 3 : Parameter / Query / Clr tot / Query
LOG Alarm, Guidance
Totalizer Unit : t, kg, g, lb, Ston, Lton, m3, L, mL, Igal,
gal, Mgal, bbl, ft3, a-ft
Time Unit : sec, min, hour, day
Measuring Range : Min. 0-0.15 m/s
: Max. 0-15 m/s
Accuracy : +/-0.4% of reading (Velocity≥1.0 m/s)
: +/-0.002 m/s (Velocity: 0.3…1.0 m/s)
Repeatability : +/-0.2% of reading
Current Output : 4-20 mA (Isolated)
Load : Max. 500 Ω
Pulse Output : Open collector
Rating : 3-30 VDC, 50 mA Max.
Pulse Rate : 1)Scaled pulse (mL/Pulse, L/Pulse, Other)
: 2)Frequency: 0-5000 Hz
Pulse Width : 50% of band width
Alarm : High / Low with open collector output
Rating : 3-30 VDC, 50 mA Max.
Communication : Bluetooth (Android) Standard
: RS485 (MODBUS Protocol) Standard
: HART signal (Compatible) Optional
Keypad : 3 Internal keys for programming
and display control
Data Storage : Operation parameters and totalizer
figures are stored by EEPROM for
more than 10 years
Low Flow Cutoff : 0-9.9%
Damping : 0-99 Seconds
Density Setting : 0.001-9.999 g/cm3
Self Diagnosis : The following error messages are
displayed if failure occurs
-Abnormal sample
-Pulse width
-Overanged output
-Internal error
-Overflow
-Empty pipe
Cable Entry : Standard: M20 Option: 1/2" NPTF
Protection Class : IP67, Explosion Proof, Ex d ia [ia] q llC T6
Ambient Temperature : -25~65 °C
Material : Aluminum Alloy
Power Supply : 90-260 VAC, 50/60 Hz
: 24 VDC +/-10% (Option)
Power Consumption : 6-8 W (Dependent on sensor size)
Weight : 4.5 kg
Mounting : Bracket on 2" pipe
AMF Collocation Type : AMF900, AMF601, AMF500
Sensor Size : DN10-DN450

Dual Frequency Excitation Method
Three line LCD display Flow Rate / Totalizer
Accuracy of +/-0.4% value of reading
Bi-directional flow measurement, current and pulse output
Explosion Proof, Ex d ia [ia] q llC T6
Bluetooth / MODBUS / HART communication
Converter can be rotated at four directions for easy installation
