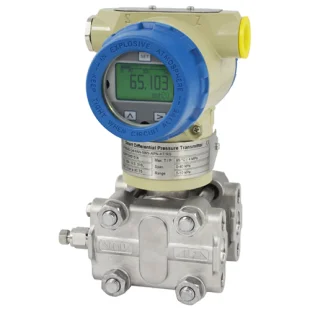

Differential Pressure Transmitter APT9000 Series

Process Fluid : Liquid, Gas, Vapor
Application : Differential Pressure, Gauge Pressure,
Absolute Pressure
Measuring Range : 0-0.16 kPa~0-1.0 kPa (Minimum)
: 0-4.0 MPa~0-20.0 MPa (Maximum)
Turndown Ratio : 100:1
Accuracy : +/-0.075% of span
Stability : +/-0.15% of URL for 2 years
Working Temperature : -25~95 °C
Max. Pressure : 40 MPa
Material
Flange / Adapter : Stainless Steel 304 / Stainless Steel 316
Drains / Vents : Stainless Steel 304 / Stainless Steel 316
Diaphragm : Stainless Steel 316L / Hastelloy B /
Hastelloy C / Monel / Tantalum
Wetted O-Ring : Buna N / Viton / PTFE
Bolts & Nuts : Carbon Steel / Stainless Steel 316
Mounting Bracket : Carbon Steel / Stainless Steel 304 / 316
Name / Tag Plate : Stainless Steel 304 / Stainless Steel 316
Converter Housing : Low copper cast aluminum alloy with
polyurethane, light blue paint
Fill Fluid : Silicone Oil / Fluorine Oil
Protection Class : IP67 (Standard)
: Intrinsically Safe, Eex ia IIC T5 (Standard)
: Explosion Proof, Ex db IIC T6


Display : 5 Digits programmable & 0-100% Bargraph
Flow rate : 5 Digit
Display Unit : Standard 22 different engineering unit
: 5 Digits programmable for special unit
Keypad : 3 Internal keys for programming and
output setting
Current Output : 4-20 mA (2-Wire)
with HART signal (Compatible)
Load : Rohm= (VDC-9) * 50
Power Supply : 9-36 VDC
Damping : 0-32 Seconds
Response Time : 100 ms
Mounting : Bracket on 2" Pipe
Humidity Limit : 0-100% Relative Humidity
Zero Calibration : Automatic zero calibration by press-button
Cable Entry : M20 Conduit Threads / 1/2" NPT (Female)
Temperature Effect : +/-0.18%~+/-0.5% of span per 20 °C
Vibration Effect : +/-0.05% of URL per g to 200 Hz in any axis
EMI / RFI Effect : Follow SAMA PMC 33.1 from 20-1000 MHz
and for field strengths up to 30 V/m
Process Connection : 1/4"-18 NPT
: 1/2"-14 NPT (with adapter)
Ambient Temperature : -25~80 °C
Dimensions : 102 mm (W) * 188 mm (H) * 130 mm (D)
Weight : 3.5 kg
