We offers a wide range in servicing process plants with our expertise, with our solution such as: consultations, field service, training and engineering
Display : LCD dot matrix, 21 characters * 8 lines Keypad : 20 General keys, one power switch Signal Connection : Alligator clip or grabber clip Cable Length : 1.5 m Function : Display, setup and alteration of parameter : Zero point adjustment, calibration : Auto power-off Communication Line Line Length : Up to 1500 m Load Resistance : 250-600 Ω Load Capacitance : Less than 0.22 μF Load Inductance : Less than 3.3 mH Power Consumption : 191.3 mA (Working state) : 1 μA (Power-off state) Material Case : ABS resin Keyboard : Polycarbonate Protection Class : IP54 Operating Temperature : -20~55 °C Storage Temperature : -20~55 °C Ambient Humidity : 90% RH or less
Power Battery : Three AA alkaline Batteries : Three Ni-MH Batteries (Rechargeable) Operable Time : Alkaline Battery: Up to 150 Hours : Ni-MH Battery: Up to 100 Hours Charge up time : Less than 12 hours Dimensions : 231 mm (L) *102 mm (W) *61 mm (H) Battery Charger : USB connect with computer : 90-260 VAC, 50/60 Hz Weight : 0.4 kg (Communicator) : 1 kg (Including accessories) Standard Package : ATH530 Hart Communicator * 1 set : Communication cable 1.5 m * 1 pair : USB connector 1.5 m (Charge) * 1 set : Ni-MH Battery 1.2 V * 3 pcs : Power Adapter 90-260 VAC * 1 set : Alligator clip * 1 pair : Grabber clip * 1 pair : Shoulder bag * 1 set
Common to most smart field Instruments AA alkaline batteries or rechargeable battery available Battery operation time more than 100 hours Low battery alarm Self-check function / Automatic power-off Large display (21 characters by 8 lines) Microprocessor-based field communicator USB port to charge
The ACA50 Series signal calibrator can measure and output multiple signals including voltage, current, TC and thermal resistance. The adoption of high definition LCD screen and silicone keypad is convenient for operating. With long standby time, high precision and programmable output function. It's widely used in lab, PLC in industry site, process instrument, electronic valve and many other area's debugging.
The ACA60 Series is mainly designed for the calibration and maintenance of on-site industrial thermodynamic instrument and their system. Its complete and practical functions are easily accessible. With latest extensive digital-converted integrative circuit and large-screen display, it is supplied with functions of output, measurement, ITS-90 query and 24 VDC power supply, making it convenient for you to check and calibrate sensor, transmitter, displayed instruments, and control system on spot.

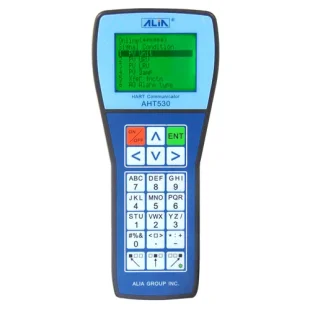

The AHT530 Series is a battery-powered, hand-held unit designed to configure, calibrate and troubleshoot to smart transmitter either remotely or nearby. AHT530 allows you to establish communication with a Hart field instrument over the existing 4-20 mA DC lines, covering the five process variables of flow, pressure, temperature and level, control valve etc.
