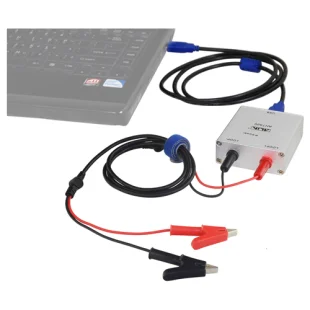

Communication AHT520 Series

ALIA

Type

: AHT520 Series

Brand

: ALIA

Download PDF

SPESIFICATION
FEATURES

Power Supply : System Power by USB Port
Supply Current : 40 mA@+5 VDC
Output Level : 0.5 +/- 0.1 Vpp trapezoidal wave
Isolation : 1500 VDC between instrument and
Computer
Leakage Current : Less than 200 μA Typical
EMI / RFI Effect : Follow SAMA PMC 33.1 from 20-1000
MHz and for field strengths up to 30 V/m
Protection Class : IP54
USB Interface : USB 1.1 and USB 2.0
Port to Hart Device : Two Mini-Grabber test clips
Length : 1.0 m
Port to Computer : USB connector
Length : 1.5 m
Operating Temperature : 0~55 °C
Storage Temperature : -40~85 °C
Storage Humidity : 0-98% relative humidity
Enclosure : Aluminum alloy housing with impact
resistant performance

System Requirements
Operating System : Windows 98 / 2000 / XP / Win7
Display : 800 * 600 or better resolution
Hard Disk Drive : 1 GB space or more
Main Memory : 256 MB or more
Function : Parameter manager
: DTM works
Parameter Storage : Saved as TXT files
Dimensions : 73 mm (L) *64 mm (W) *24 mm (H)
: 2.9" (L) * 2.5" (W) * 0.85" (H)
CE Mark : The AHT520 meets the legal requirements
of the EC directives
Weight : 0.15 kg (0.33 lb)
Standard package : AHT520 HART Communicator * 1 set
: Test clip (1.0 m) * 1 pair
: USB connector (1.5 m) * 1 set
: USB memory (DTM & Driver inside) * 1set

Compatible with HART products from multiple manufacturers
No external power supply required, USB powered from notebook / PC
Compact size 2.9" * 2.5" * 0.85" (73 * 64 * 22 mm)
Rugged Aluminum Alloy enclosure
Polarity insensitive so you may attach either one of the test clips to positive or negative poles
Standard USB port
USB 1.1 and 2.0 compatible
Hart communicator programming software included
