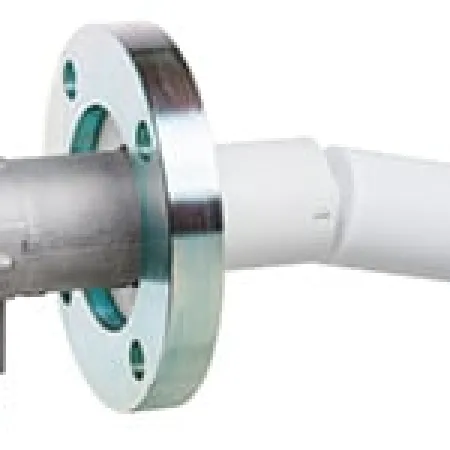

Type A 304 98

Nominal pressure

PN 8
max. 8 bar to 50°C
max. 6 bar to 65°C
max. 4.5 bar at 100°C
max. 3 bar at 200°C
Operating temperature

0 to 200°C
Ambient temperature

0 to 70°C
Density of the liquid

min. 0.75 kg/dm³
Operating differential

12 mm, fixed
Wetside material

PTFE (Seal part with 25% glass fibre)
Slip-on flange

Carbon steel P265GH zinc galvanized, passivated
Housing material

seawater resistant die cast aluminium
Flange

DN 80, PN 10 acc. to EN 1092-1
Flange facing

raised face, form B1 (Form C – DIN 2526)
Switch element

Microswitch SPDT with silver contacts
Switch rating

250 VAC, 5 A / 30 VDC, 5 A
Enclosure

IP65
Weight

approx. 5 kg
Flanges acc. to EN 1092-1

PN 10, DN 80 to DN 150
Flanges acc. to ANSI B16.5

PN cl. 150, DN 3″ to DN 6″
Flanges acc. to JIS B 2220

PN 10K, DN 80 to DN 150A
Approvals

ABS, BV, ClassNK, LR
