Nominal pressure PN 10 max. 10 bar to 25°Cmax. 5 bar at 45°Cmax. 2.5 bar at 60°COperating temperature 0 to 60°CAmbient temperature 0 to 60°CDensity of the liquid min. 0.65 kg/dm³Operating differential 12 mm, fixedWetside material PPSlip-on flange PVCHousing material seawater resistant die cast aluminiumFlange DN 80, PN 10 according to EN 1092-1Flange facing raised face, form B1Switch element Microswitch SPDT with silver contactsSwitch rating 250 VAC, 5 A / 30 VDC, 5 AEnclosure IP65Weight approx. 1.9 kgApprovals ABS, BV, ClassNK, LR

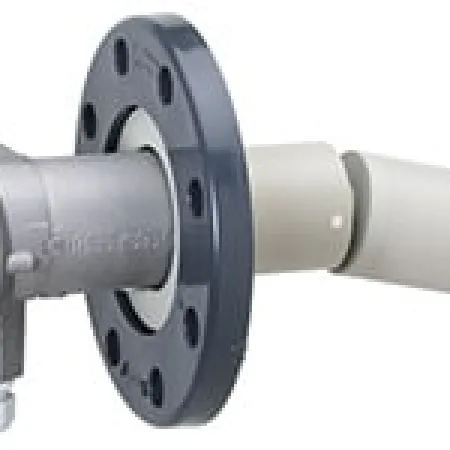

All wetted parts are made of PP. The switches are available with EN/DIN, ANSI and JIS industrial flanges.
