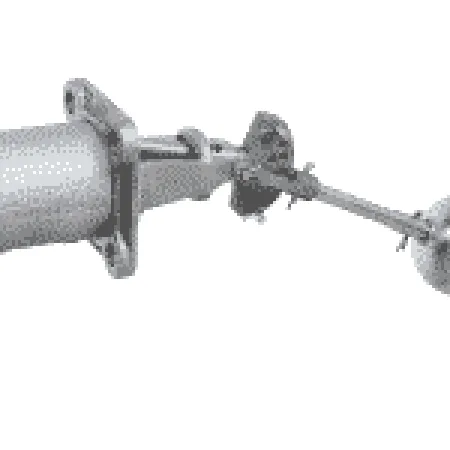

TRIMOD BESTA

Type A 01 090 to A 01 095

TRIMOD BESTA

Type

: Type A 01 090 to A 01 095

Brand

: TRIMOD BESTA

Download PDF

SPESIFICATION
FEATURES

Nominal pressure

PN 25 according to EN/DIN
Operating temperature

0 to 300°C
Ambient temperature

0 to 70°C
Density of the liquid

min. 0.75 kg/dm³
Operating differential

12 mm, fixed
Wetside material

stainless steel, CrNiMo
Housing material

seawater resistant die cast aluminium
Flange

square 92 x 92 mm, PCD 92 mm
Switch element

Microswitch SPDT with silver contacts
Switch rating

250 VAC, 5 A / 30 VDC, 5 A
Enclosure

IP65
Overall length

278 to 561 mm, depending on type
Safety Integrity Level (SIL)

SIL 1 (Types AA 01 090 – 095: SIL 2)
Approvals

ABS, BV, ClassNK, DNV-GL, LR, RINA,
RMRS

Adjustment of switching differential The switching differential can be set by inserting pegs in holes 1 to 9 of the adjustment block (see drawing). The resulting differentials, the positions of the switching points and the float travel can be seen in the table below. The values are in mm and are referenced to water at 20'C and density of 1.0kg/dm3
