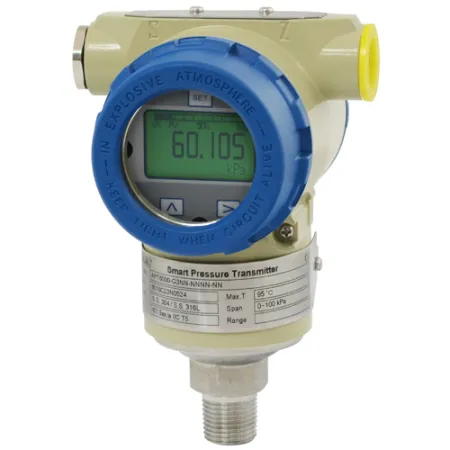

Pressure Transmitter APT8000 Series

Process Fluid : Liquid, Gas, Vapor
Application : Absolute Pressure, Gauge Pressure,
Vacuum
Measuring Range : 0-10 kPa~0-30 kPa (Minimum)
: 0-32 MPa~0-70 MPa (Maximum)
Turndown Ratio : 100:1
Accuracy : +/-0.075% of span
Stability : +/-0.15% of URL for 2 years
Working Temperature : -25~95 °C
Max. Pressure : 70 MPa
Material
Connection : Stainless Steel 304 / Stainless Steel 316
Diaphragm : Stainless Steel 316 / Tantalum
Housing : Low copper cast aluminum alloy with
polyurethane, light blue paint
Name / Tag Plate : Stainless Steel 304 / Stainless Steel 316
Cable Entry : M20 Conduit Threads / 1/2" NPT (Female)
Process Connection : 1/2" NPT, 1/2" BSPP
Temperature Effect : +/-0.18%~+/-0.5% of span per 20 °C
Over Pressure Limit : 200% of Full Scale
Vibration Effect : +/-0.05% of URL per g to 200 Hz in any axis
EMI / RFI Effect : Follow SAMA PMC 33.1 from 20-1000 MHz
and for field strengths up to 30 V/m

Display : 5 Digits programmable & 0-100% Bargraph
Display Unit : Standard 22 different engineering unit
: 5 Digits programmable for special unit
Keypad : 3 Internal keys for Programming
and output setting
Current Output : 4-20 mA (2-Wire)
with Hart Signal (Compatible)
Load : Rohm= (VDC-9) * 50
Power Supply : 9-36 VDC
Digital Communication : HART Protocol
Damping : 0-32 Seconds
Response Time : 100 ms
Mounting : Direct installation or bracket on 2" Pipe
Humidity Limit : 0-100% Relative Humidity
Turn on Time : 2 Seconds with minimum damping
Zero Calibration : Automatic zero calibration by push-button
Ambient Temperature : -25~85 °C
Dimensions : 102 mm (W) * 160 mm (H) * 130 mm (D)
Weight : 1.3 kg
Protection Class : IP67 (Standard)
: Intrinsically Safe, Eex ia IIC T5 (Standard)
: Explosion Proof, Ex db IIC T6
